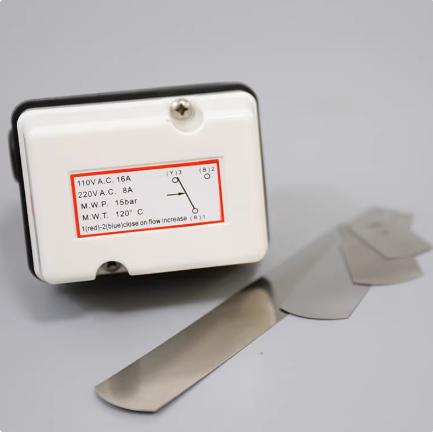

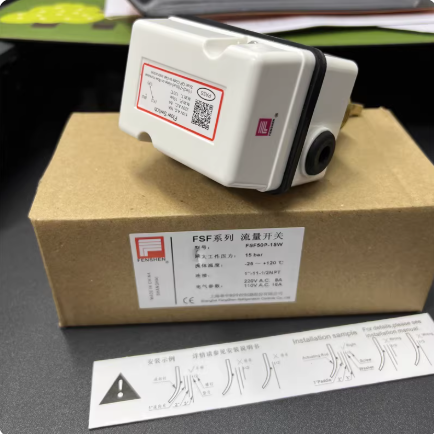

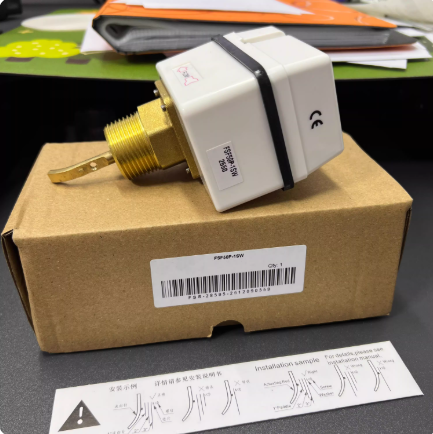

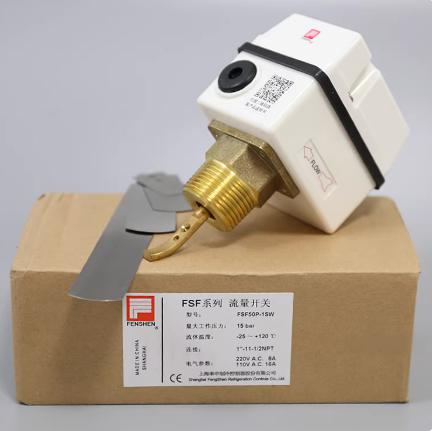

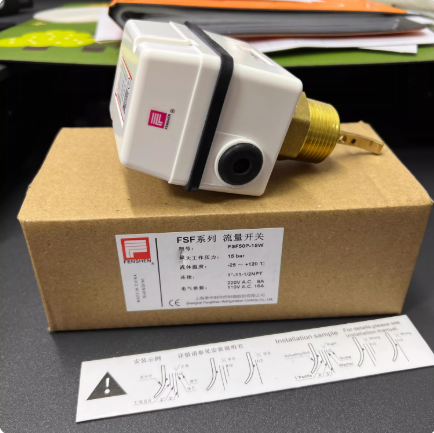

The FSF50P series flow switches are target-type flow switches, mainly used for measuring and controlling the liquid flow passing through pipelines, such as water and ethanol.
A typical application is to be used in places that require interlock functions or flow interruption protection.
The large-load single-pole double-throw (SPDT) switch has the characteristic of rapid action, ensuring the instantaneous nature of the flow switch.
The enclosure adopts a fully sealed structure, and all internal components are made of stainless steel, ensuring that the flow switch is suitable for various environments.
The FSF-A type flow switch uses fully stainless steel as the contact material with the medium, and is mainly used in pipeline systems with corrosive fluids.

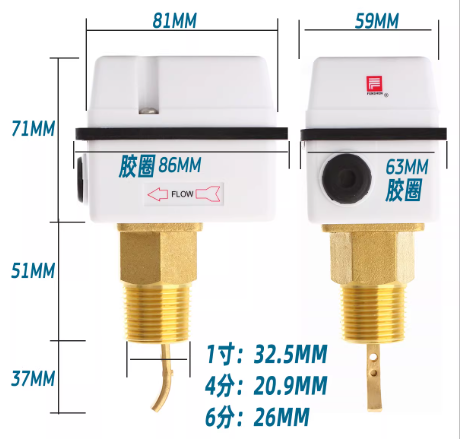

Pipe size: DN25, DN20, DN15
Environmental temperature: -20 to +65°C
Medium temperature: -20 to +110°C
Upper limit fluid pressure: 1.5 MPa
Upper limit allowable flow rate: 1 m/s
Applicable medium: Fluids that will not corrode copper alloys
Protection: IP54
Delivery Options:
Delivery Method | Incoterms Term | Applicable Countries |
LCL, FCL by sea | EXW, FOB, CFR, CIF | General for all countries. |
Air courier to door | DDU, DDP | General for all countries. |
Air cargo to airport | CIF | General for all countries. |
Door to door by road | DDP | is being developed |
Door to door by sea | DDU, DDP | Southeast country |
LCL=Less than Container Load. FCL =Full Container Load
DDU = Delivery Duty Unpaid DDP = Delivery Duty Paid
The above shipping information is general, and changing from time to time. Confirmation with us is necessary for each order.
