Core Functions and Application Scenarios

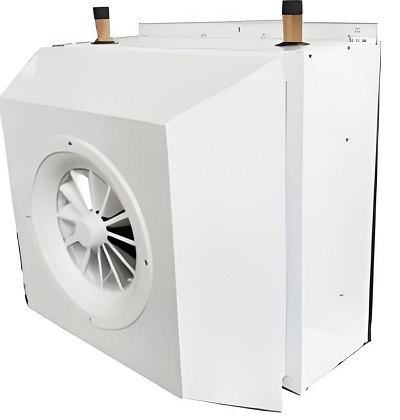

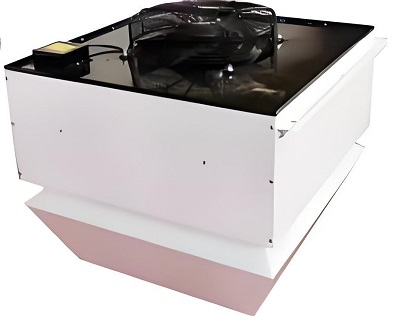

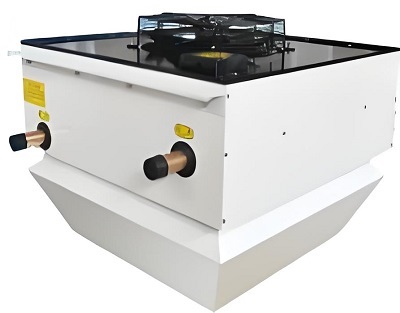

This device is a high-rise space-specific heating equipment, specially designed for factories, warehouses, stadiums, etc. with a maximum height of up to 24 meters. It addresses the problem of "hot air gathering at the top and uneven temperature in the working area" of traditional heating, achieving uniform temperature distribution throughout the space and meeting the heating needs of large areas.
Technical Details:
Equipped with international brand external rotor axial flow fans (high reliability, maintenance-free), with a balance level reaching AMCA standard G2.5; efficient heat exchange coils (mechanical expansion tubes, full pressure side leakage); adjustable swirl air distribution device (efficient air distribution, automatic adjustment of outflow angle).
IV. Product Parameters and Application Directions
• Air Volume Range: 4000 - 8000 m³/h;
• Heating Capacity: 59 - 130 Kw;
• Cooling Capacity: 39 - 78 KW
• Usage: Large space heating, cooling;
• Installation Method: Ceiling/roof/wall installation;
• Control: Wireless, wired control.
Technical Advantages and Performance Features
1. Air Distribution and Energy Saving:
It adopts an efficient air distribution device to evenly distribute hot air throughout the space, eliminating undesirable temperature layers; through an intake-type axial flow fan, it absorbs heat from the top and distributes it to the working area, avoiding heat waste and requiring low water supply temperature, achieving energy conservation and reduction.
2. Functions and Installation:
A single unit can achieve heating, cooling, ventilation, etc. Multiple functions in one device reduce investment costs; installation methods are flexible (ceiling/roof/wall), with a beautiful hanging design that does not occupy working space.
Delivery Options:
Delivery Method | Incoterms Term | Applicable Countries |
LCL, FCL by sea | EXW, FOB, CFR, CIF | General for all countries. |
Air courier to door | DDU, DDP | General for all countries. |
Air cargo to airport | CIF | General for all countries. |
Door to door by road | DDP | is being developed |
Door to door by sea | DDU, DDP | Southeast country |
LCL=Less than Container Load. FCL =Full Container Load
DDU = Delivery Duty Unpaid DDP = Delivery Duty Paid
The above shipping information is general, and changing from time to time. Confirmation with us is necessary for each order.
