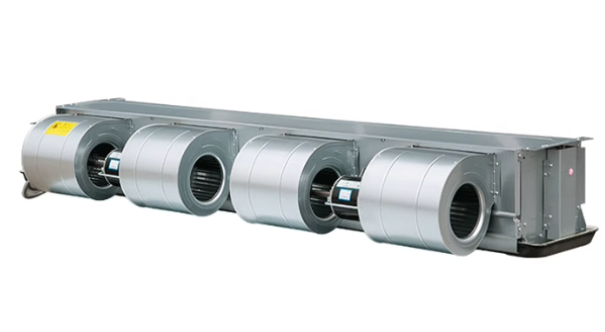

Ceiling Concealed Fan Coil Unit

Product Introduction

According to their structural forms, they can be classified as: vertical type, horizontal type, wall-mounted type, card-type, etc. According to their structural forms, they can be classified as: vertical type, horizontal type, wall-mounted type, card-type, etc. The fan coil units should be selected as either exposed or concealed based on the specific conditions of the room and the decoration requirements, and the installation location and form should be determined. Vertical units are generally placed under the exterior window sills; horizontal units are hung at the upper part of the room; wall-mounted units are hung above the wall; column-mounted units are placed on the wall against the wall and are either placed on the ground or within the partition wall; and cassette units are embedded in the ceiling.

Specifications & Parameters

Model naming convention
FP—123456
Here, FP: Product Name, Fan Coil Unit.
1: Rated Air Volume, the number after the national standard model is multiplied by 10/h.
2: Structural Form: Horizontal use W, Vertical use L, Card type use K, Wall-mounted use BG, Column type use LZ.
3: Installation Form: Concealed installation use A, exposed installation use M.
4: Without return air box, no symbol; with return air box use G.
5: Inlet Direction: Left inlet use Z, Right inlet use Y.
6: Usage Characteristics: Standard type has no code; Positive pressure type uses H followed by a number.
