Technical Parameters
Valve design: PN40
PMO Maximum working pressure under saturated steam: 32bar g
TMO Maximum working temperature: 300°C
△PMX Maximum working pressure differential: 32bar g
Body Material:
Cast carbon steel, stainless steel.

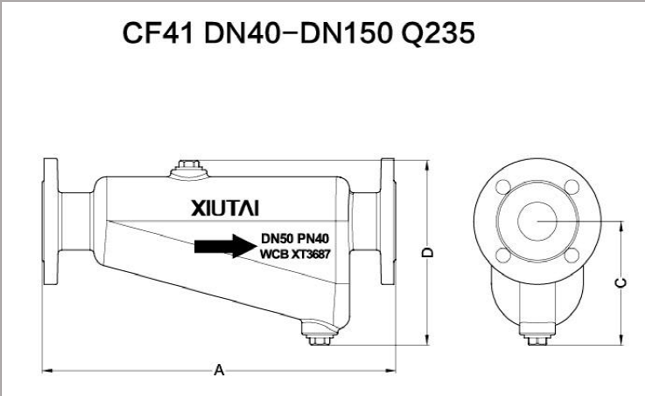

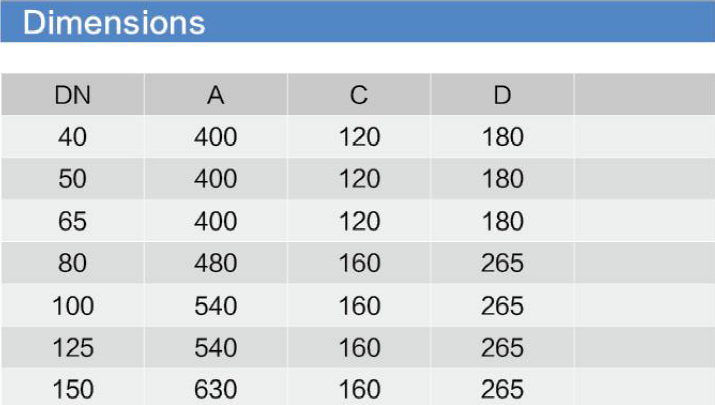

Specification and Connection:
DN40-DN150 Flanged PN16/PN40DN40-DN150 Flanged ANSI 150.
Installation Position:
Horizontal connection:from left to right.
Horizontal connection : from right to left.
Delivery Options:
Delivery Method | Incoterms Term | Applicable Countries |
LCL, FCL by sea | EXW, FOB, CFR, CIF | General for all countries. |
Air courier to door | DDU, DDP | General for all countries. |
Air cargo to airport | CIF | General for all countries. |
Door to door by road | DDP | is being developed |
Door to door by sea | DDU, DDP | Southeast country |
LCL=Less than Container Load. FCL =Full Container Load
DDU = Delivery Duty Unpaid DDP = Delivery Duty Paid
The above shipping information is general, and changing from time to time. Confirmation with us is necessary for each order.
