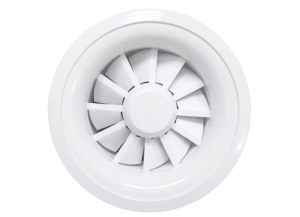

Swirl diffuser is mainly used in industrial plant. The swirl diffuser is working in low noise,the air
will be spiral out to ensure the temperature dropped rapidly.The swirl diffuser also can be used in thesystem of variable air volume in between 25% to 100%.It can be installed on the ceiling (maximum
thickness:20mm). The out look can be designed according to the requirements from the customer.
Three type can be selected :

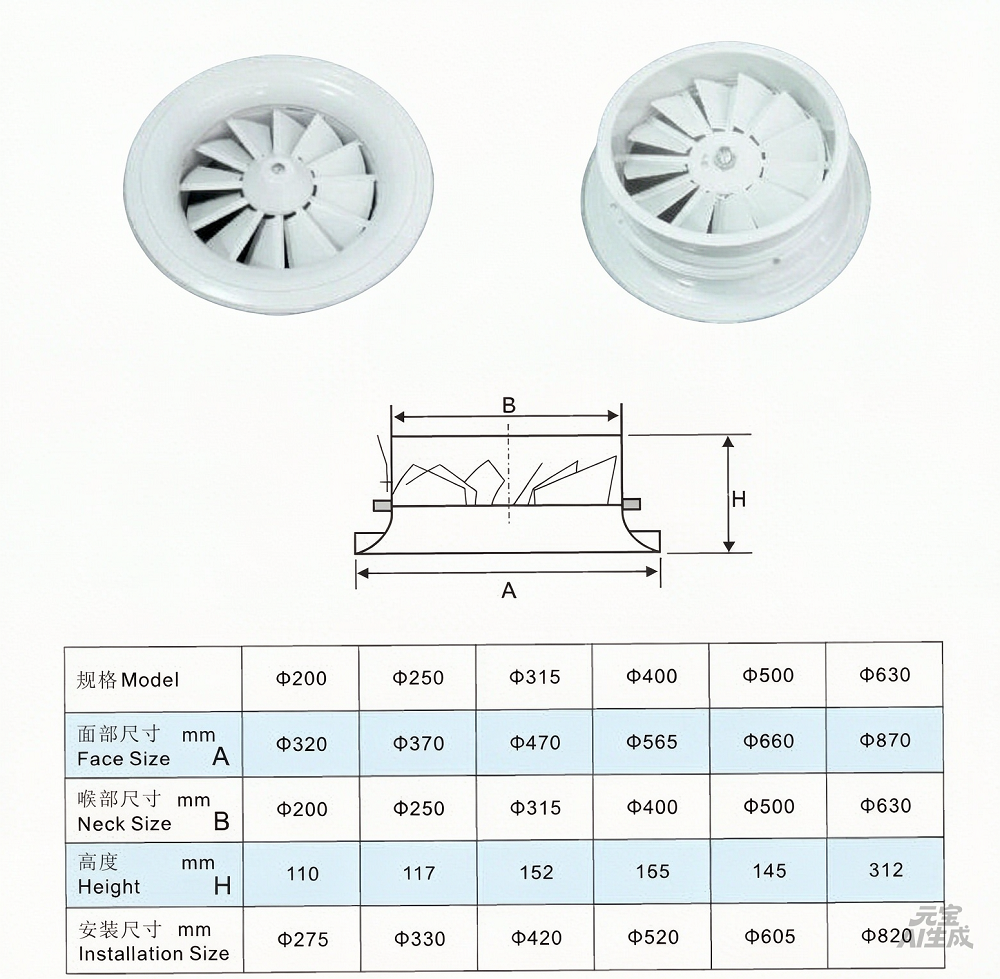

1. Fixed Blade Swirl Air Diffuse.

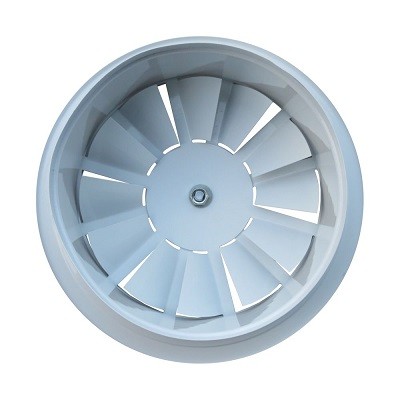

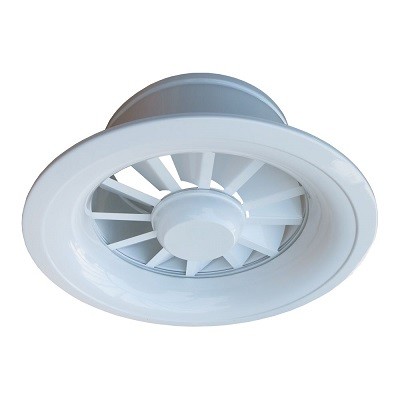

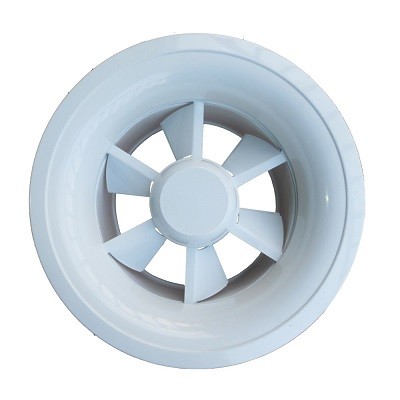

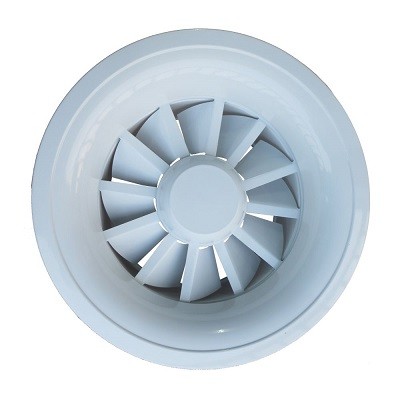

2. Adjustable Blade Swirl Air Diffuser( manual adjust type and actuator adjust type ) .

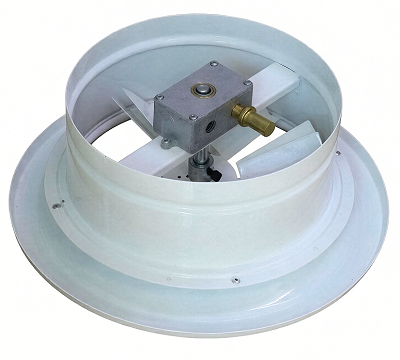

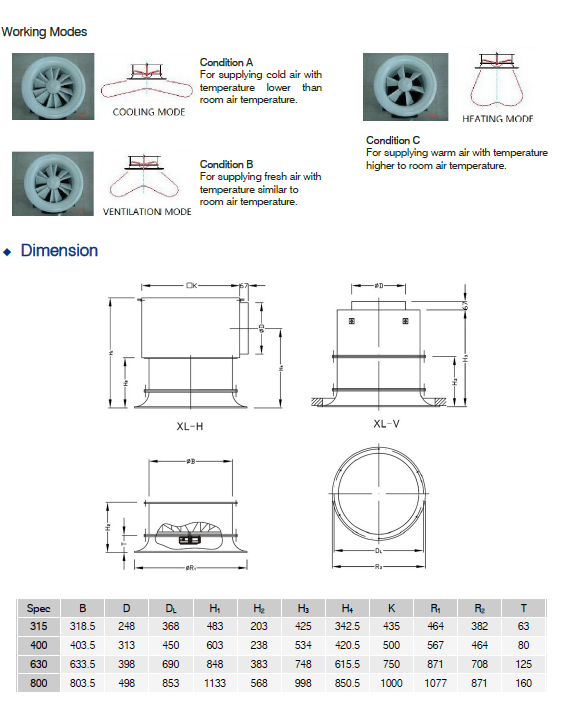

3. Thermal Swirl Diffuser.
Delivery Options:
Delivery Method | Incoterms Term | Applicable Countries |
LCL, FCL by sea | EXW, FOB, CFR, CIF | General for all countries. |
Air courier to door | DDU, DDP | General for all countries. |
Air cargo to airport | CIF | General for all countries. |
Door to door by road | DDP | is being developed |
Door to door by sea | DDU, DDP | Southeast country |
LCL=Less than Container Load. FCL =Full Container Load
DDU = Delivery Duty Unpaid DDP = Delivery Duty Paid
The above shipping information is general, and changing from time to time. Confirmation with us is necessary for each order.
